Upgrading the storage or RAM in a high-end gaming laptop can be straightforward if you know what to expect for each model. Below, we break down how to do it on the ASUS ROG Zephyrus G14 with tips on screw locations, cable cautions, compatible SSD sizes, maximum memory, and warranty considerations.
Upgrading Storage/RAM on an ASUS ROG Zephyrus G14 Gaming Laptop (2022–2024)
Bottom cover and screws
Despite its compact size, the G14 is fairly serviceable. The 2023 G14 (GA402) has 11 Phillips screws on the bottom – including three hidden under rubber caps in the middle of the panel. Pop out those rubber screw caps gently (they can be pressed back in later). One of the corner screws (bottom-right when inverted) is a captive screw that also helps pry up the panel. After loosening all screws, start prying at that corner with a plastic tool to release the clips. Work around the edges; the front edge clips can be tight. Use caution to avoid marring the magnesium-aluminum chassis.
Opening caution
Good news – the Zephyrus G14 has no ribbon cables attached to the bottom cover. You can fully remove the panel once the clips release. The mesh dust filters on the intake vents are attached to the cover, but no wires. With the bottom off, be careful not to misplace the power button gasket (if any) and ensure the side vent foam remains in place.
RAM situation
The G14 is known for its mixed RAM configuration. It has onboard soldered memory plus one SO-DIMM slot. In recent models (2022–2023), typically 16GB is soldered on the motherboard, and the slot is free or occupied by another module. For instance, a stock 16GB model might have 8GB soldered + 8GB in the slot, or 16GB soldered + empty slot. The system supports up to 48GB (16 onboard + a 32GB module) officially, though some users have even managed 64GB by using a non-standard 48GB SO-DIMM (Crucial’s 24GBx2 kit, giving 16+48=64).
ASUS advertises max 32GB for dual-channel operation, but that was before 24GB modules existed. Realistically, 40GB (8+32) or 48GB (16+32) works fine, just note the memory will run dual-channel for the first 16GB×2 and the remainder in single-channel mode (a minor performance hit only when using above 32GB).
Upgrading RAM
The single SO-DIMM slot is located near the middle-left under a black mylar flap or thin metal shield. Remove any tape covering it, then release the retention clips to pop out the original stick (if present). When inserting a new RAM stick, use DDR5-4800 SODIMM to match the soldered RAM’s speed. The G14 will automatically run at the lower speed if you install faster memory, and mixing sizes is okay. Once installed, the soldered + SODIMM work together in dual-channel (interleaved) mode for improved performance. Make sure the module is firmly seated – it should click in place.
SSD slot
The Zephyrus G14 has one M.2 2280 PCIe 4.0 SSD slot. (Some older 14″ laptops had 2230 drives, but the G14 uses full size.) It comes with one drive pre-installed. To replace or upgrade it, unscrew the single retaining screw and slide the SSD out. The drive may have a thermal pad on the bottom contacting a metal shield; carry that pad over or replace it. The G14 supports up to 2TB or higher NVMe SSDs – there’s no inherent capacity limit except your budget.
Insert the new SSD at ~30° angle, then screw it down. Ensure the thermal pad (on the shield or frame) makes contact for cooling. The G14 only has one slot, so if you need more storage, you’ll be swapping out the existing drive. Consider cloning your data before removal, or use ASUS’s Cloud Recovery to reinstall Windows if needed.
Battery and other components
The G14’s battery is 76 Wh and spans the front area. One of its screws is located under the SSD – meaning you must remove the SSD to get the battery out. Keep this in mind if you ever plan a battery replacement. Also, the fans and heatsinks are accessible for cleaning once inside. If you see dust buildup, gently blow or brush it off (while preventing the fans from spinning freely).
Ribbon and connector caution
The only cable to watch out for is the battery connector itself and perhaps the touchpad or keyboard cables near the battery, but those you shouldn’t need to touch. Always disconnect the battery before removing the SSD or RAM, to eliminate any chance of shorting the board.
Warranty notes
ASUS’s stance on the Zephyrus G14 is that RAM and SSD are user-upgradeable (they often highlight this in marketing). In fact, for 2022/2023, one selling point over competitors was that the G14 had an upgradeable slot (whereas some other 14″ models solder everything). Upgrading these will not void your warranty, as long as no damage is caused during the process. If you ever need to send it in, it’s generally recommended to put the original RAM/SSD back if possible. But simply opening the panel and upgrading is expected behavior (ASUS provides a guide on how to upgrade the G14 on their website).
Tips for Storage/RAM Upgrade on a ASUS ROG Zephyrus G14 Gaming Laptop
Ribbon-Cable and Screw Map Recap
Always refer to your laptop’s service manual or community guides for screw maps. ASUS often uses captive screws to aid opening (Scar 18, Zephyrus G14), and also has those pesky ribbon cables for RGB (Scar series). Take pictures as you go so you remember cable connections and screw locations. Each model uses slightly different screw lengths – mixing them up can result in longer screws poking through or shorter screws not fully securing. Using a piece of paper with a drawn diagram to place screws can help keep them organized.
Compatible SSD Heights
These models use M.2 2280 (80 mm length) NVMe SSDs. Generally, if a laptop comes with a heatsink or cover, it can accommodate a standard double-sided drive. If you try to install a very thick SSD and feel resistance when putting the cover back, double-check that the drive is fully seated and any spacer standoffs are correct.
Max RAM Summary
G14 up to 48GB (with 16GB soldered). These are the official or commonly achieved maxima. In the future, BIOS updates may enable higher limits if larger SO-DIMMs become available (e.g., 48GB modules for 96GB total on dual-slot systems).
Warranty and Final Notes
ASUS allows end-user upgrades of RAM and storage. A good practice is to perform upgrades early in the product’s life (so if anything is off, you can address it under warranty). Keep your receipts for new components and consider running a stress test after upgrading (to ensure the new RAM/SSD is seated and functioning properly). If something isn’t recognized, recheck connections. And keep the old parts – if you need warranty repair, they might request the laptop in stock configuration.
For a deep comparison of the top gaming laptops, check our buyer’s guide to high-end gaming laptops, and for tips to upgrade other top laptops, check our upgrading guides for:
Sources
- LaptopMedia, How to open ASUS ROG Zephyrus G14 GA402 (2023) – disassembly and upgrade options, laptopmedia.com
- Asus ROG, How to upgrade the RAM and SSD of your ROG Zephyrus G14 laptop, rog.asus.com

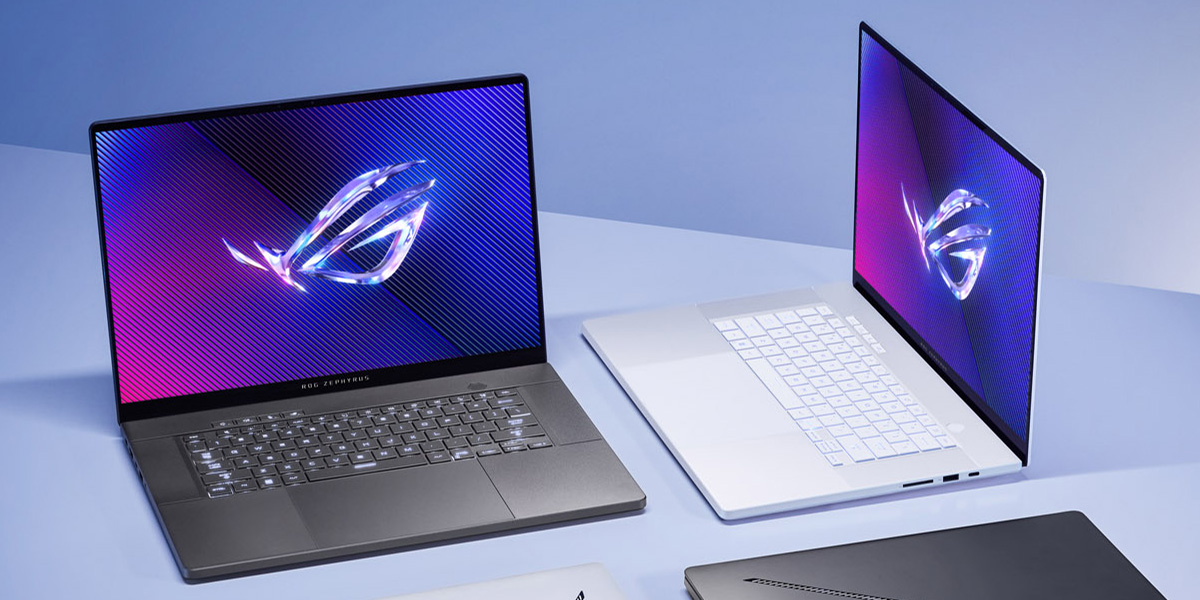

- Thumb image: rog.asus.com
